Продукция
Медицинский клапан открывающий штуцер головка быстрое разъединение шланг штуцер пластмассовый воздух быстрое соединение
$ 2.8
Вес
-
Type
- 1 / 4 - дюймовая цельнопластиковая внутренняя резьба
-
Материалы
- Природный полиформальдегид (ацетальдегид)
-
уплотняющее o - образное кольцо
- Бутадиен - нитрильный каучук
-
Шланговый крюк
- 1/8"(3.2mm)lD Tubing
- 1/4"(6.4mm)lD Tubing
- 5/16"(8mm)lD Tubing
- 3/8"(9.5mm)lD Tubing
-
Параметры клапана
- С клапаном (запорный клапан)
- Безклапанный (открытый расход)
-
Конец
- Прямая линия
Наличные.
400000
- Описание продукции
-
- Название товара: Медицинский клапан открывающий штуцер головка быстрое разъединение шланг штуцер пластмассовый воздух быстрое соединение
Все наши компоненты могут быть настроены в соответствии с материалом, цветом, формой и размерами для удовлетворения конкретных потребностей приложения с минимальным количеством заказов 5000 штук. Добро пожаловать на консультацию.
Medical Open Flow Valved Female Socket Quick Disconnect Hose Fittings Coupling Plastic Air Quick Connect Release Coupler
Product Description
Technics Plastic Injection Molding Usage Standard flow quick-disconnect couplings require a body and an insert in the same flow size. Plug insert into body to connect fitting and easily disconnect the fitting by simply press the thumb latch Application Medical devices, laboratory, life science, biopharmaceutical, biochemical analysis, bioengineering, circulating water cooling pipe system, water treatment and disinfection, food&beverage, packaging machinery, industrial and hundreds of other applications; Material Natural/Black POM Acetal Plastic, customization is welcomed; Barbed Hose ID 1/16" Flow Size Small Series:
1/16" =1.6mm (01); 1/8"= 3.2mm (02);
1/8" Flow Size Medium Series:
1/16"=1.6mm (01); 1/8"=3.2mm (02); 3/16"=4.8mm (03); 1/4"=6.4mm(04);
1/8"-27NPT(02); 1/8"-28BSPT(02BSPT); 1/4"-18NPT(04);
1/4" Flow Size Large Series:
1/8"= 3.2mm (02); 1/4"=6.4mm (04); 5/16"=8mm (05); 3/8"=9.6mm (06);
1/4"-18NPT(04);
1/4" Flow Size All Plastic Series:
1/4"=6.4mm(04); 5/16"=8mm (05); 3/8"=9.6mm (06);
1/4"-18NPT(04);
Seal Ring Material Standard Buna-N O-ring;
FKM/EPDM/Silicone rubber can be customized;
Valve Option Valved (Shut Off) or Non-Valved (Open Flow/Straight Through) Valve Spring Stainless Steel Termination Option Panel Mount/In-line/Elbow/Pipe Thread/PTF Metal Nut; Working Pressure Vacuum to 73 psi, 5 bar Working Temperature 32°F - 160°F (0°C - 71°C) Customization Service Welcomed Depending on the 15-years experience in various fluidic control systems, our company has had a set of comprehensive manufacturing systems involving in R&D and design, mold manufacture, plastic injection, assembly & inspection, finished-product sales and warehousing logistics. It has many advantages of stable quality, efficient production and punctual delivery, which can be said a trustworthy partner.
APF1700430/04/05/06-1/4" Flow Size, All Plastic, In-Line Non-Valved Female Body

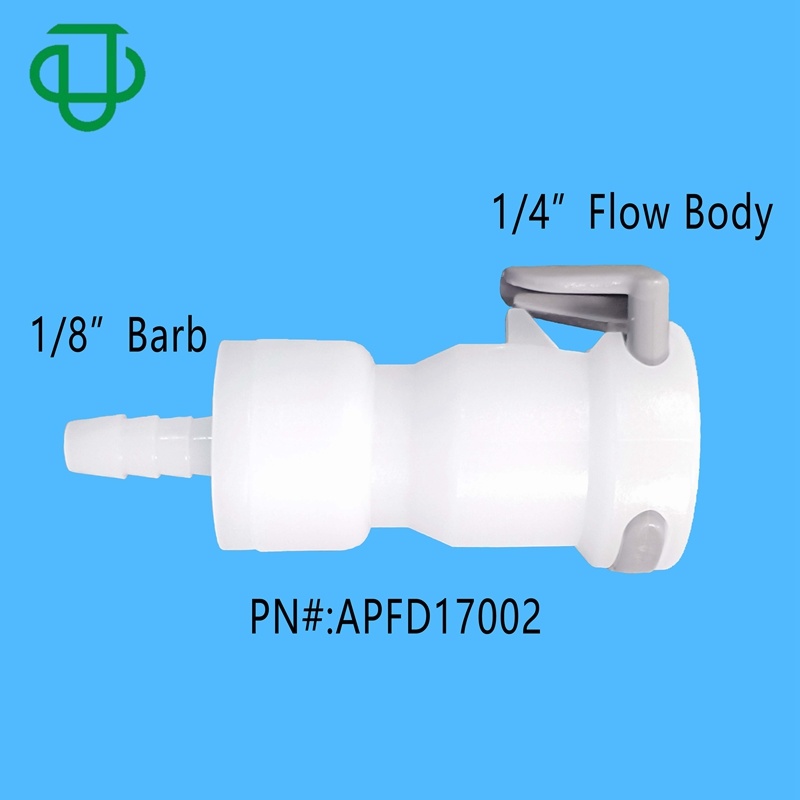

APFD17002/04/05/06-1/4" Flow Size, All Plastic, In-Line Valved Female Body

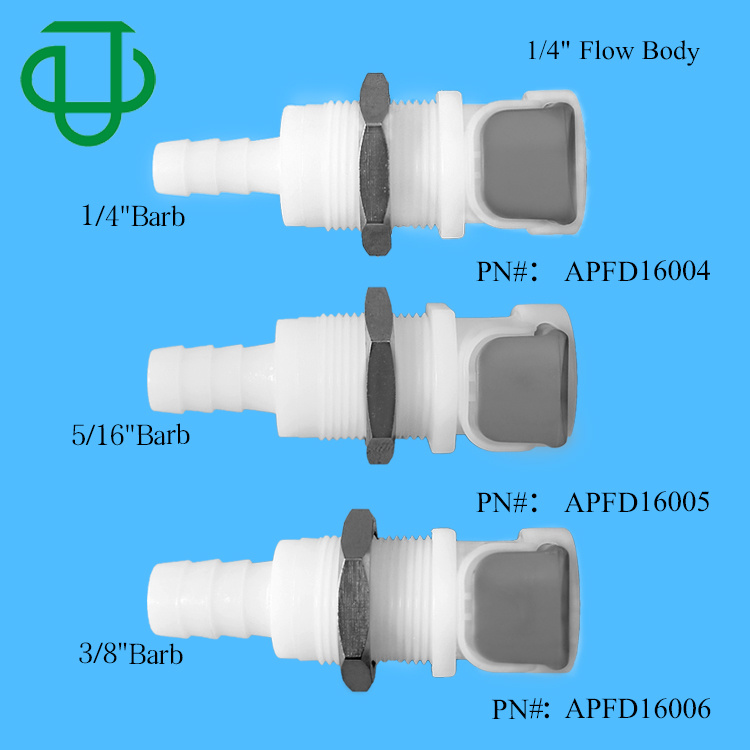

APFD16004/05/06-1/4" Flow Size, All Plastic, Panel Mount Valved Female Body
Large 1/4" Flow Size All Plastic Quick Disconnect Coupling Female Body & Male Insert
APMD22004/05/06-1/4" Flow Size, All Plastic, Straight In-Line Valved Male Insert

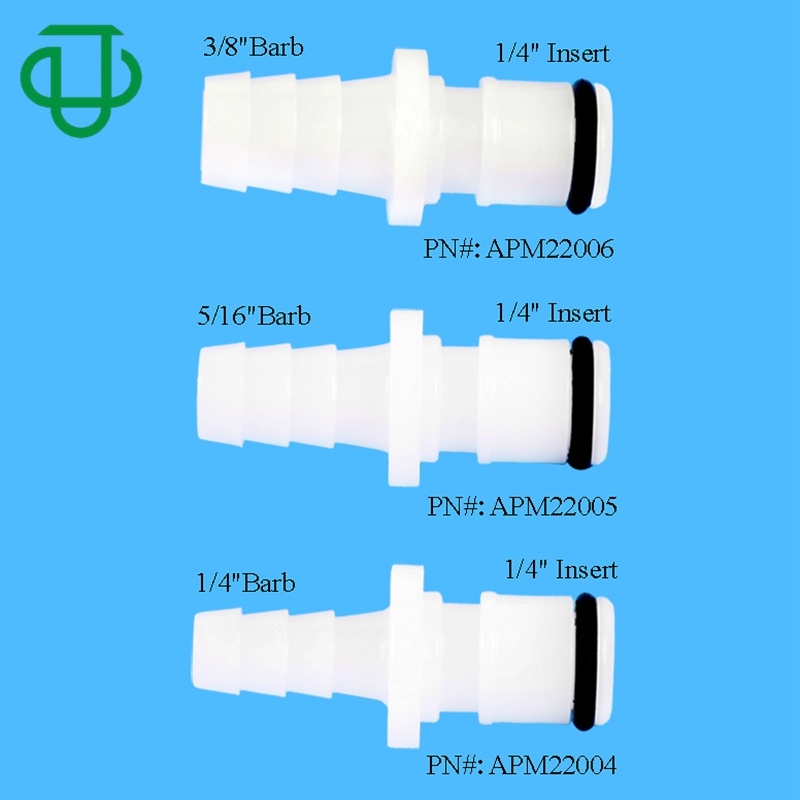

APM22004/05/06-1/4" Flow Size, All Plastic, Straight In-Line Non-Valved Male Insert

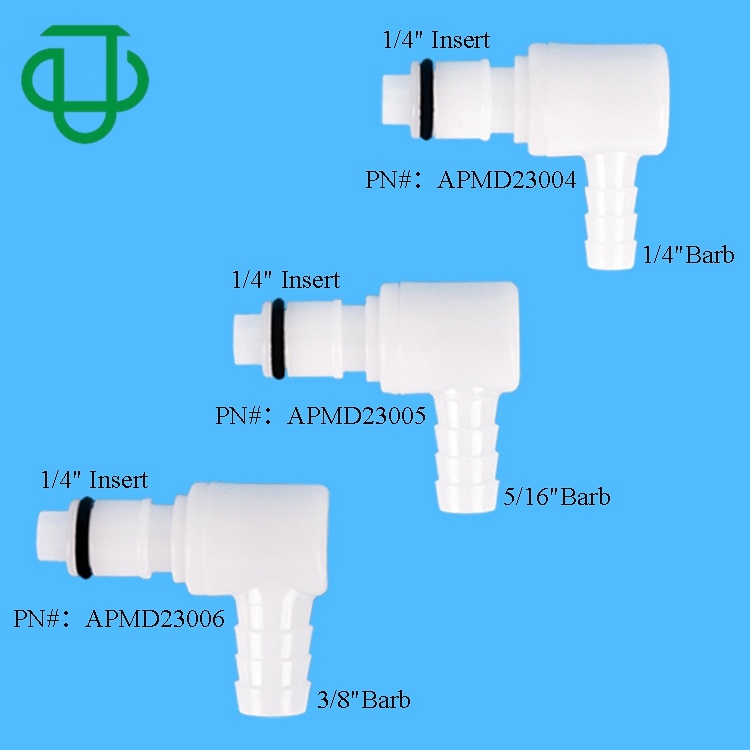

APMD23004/05/06-1/4" Flow Size, All Plastic, Elbow Valved Male Insert

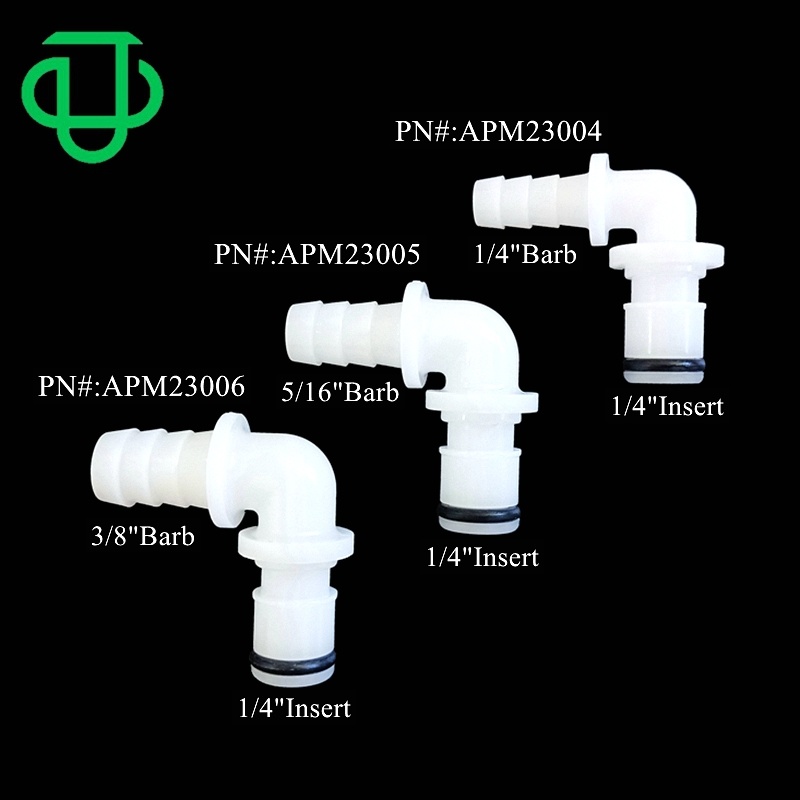

APM23004/05/06-1/4" Flow Size, All Plastic, Elbow Non-Valved Male Insert
APMD42004/05/06-1/4" Flow Size, All Plastic, Panel Mount Valved Male Insert
APM42004/05/06--1/4" Flow Size, All Plastic, Panel Mount Non-Valved Male Insert

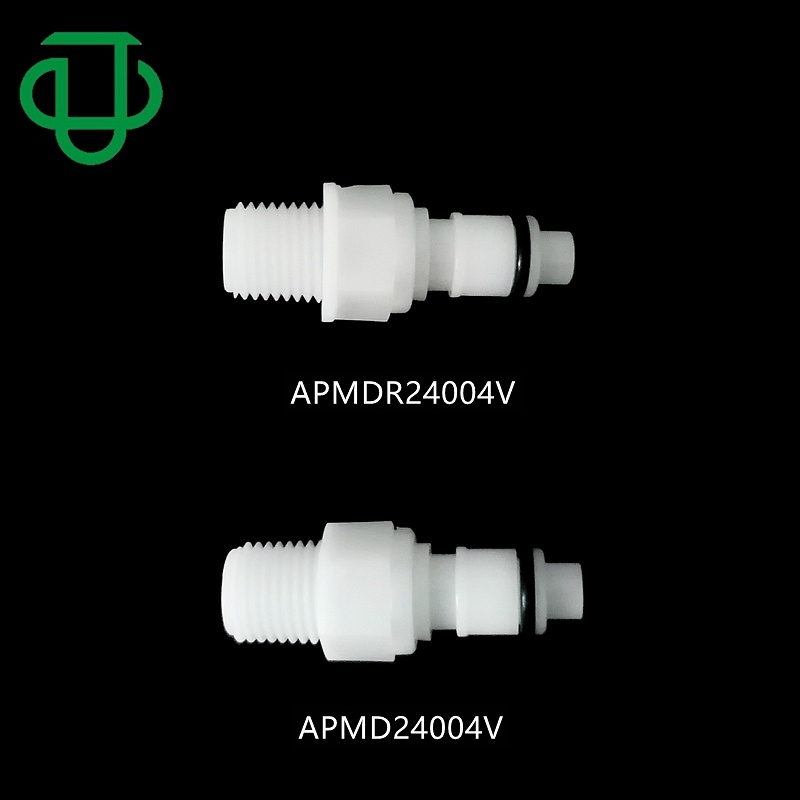

APMD24004-1/4" Flow Size, All Plastic, 1/4"NPT Pipe Thread Valved Male Insert
APM24004-1/4" Flow Size, All Plastic, 1/4"NPT Pipe Thread Non-Valved Male Insert
AP2FD17004/05/06-1/4" Flow Size, All Plastic, In-Line Valved Female Body
AP2F17004/05/06-1/4" Flow Size, All Plastic, In-Line Non-Valved Female Body
AP2MD22004/05/06-1/4" Flow Size, All Plastic, In-Line Valved Male Insert
AP2M22004/05/06-1/4" Flow Size, All Plastic, In-Line Non-Valved Male Insert
Our company has specialized in researchs and developments, designs, manufactures, promotes and sales of a variety of plastic fittings, plastic connectors, quick disconnect couplings, check valves, filters, peristaltic pumps, solenoid valves, plastic tubings and other accessories applied in fluid systems. Our products are widely used in all kinds of products, machinery, devices and process of liquid and gas pipe system, In the life sciences and special industrial markets have thousands of applications to be used, Such as blood pressure, blood oxygen monitoring module and blood gas recovery equipment, biochemical analysis/inspection equipment, dialysis water treatment equipment, treatment and reuse equipment, breathing anesthesia, incubator, bioengineering and circulating water cooling pipe system, solvent printer, inkjet printer, film printer and ink supply system, water quality online analytical instruments, laboratory equipment, food machinery, fermentation system process equipment, plating equipment, PCB&LCD process equipment, chemical equipment, packaging machinery, water treatment and disinfection equipment, inflatable products, automation equipment...And so on.
Depending on the 15-years experience in various fluidic control systems, our company has had a set of comprehensive manufacturing systems involving in R&D and design, mold manufacture, plastic injection, assembly & inspection, finished-product sales and warehousing logistics.It has many advantages of stable quality, efficient production and punctual delivery, which can be said a trustworthy partner.
Following different requirements from wider customers, including drawings or samples offering, our company can offer satisfied design services and mass customized services.
We’re looking forwards to cooperating with a wide range of OEMs and ODMs.
Company Profile
Female/Male Luer Lock End Plug
